Before cloning we have to take full database backup using RMAN Target /
COMMAND:
RMAN> BACKUP DATABASE PLUS ARCHIVELOG;
Once completed,move the backup file to target server
USING SCP BACKUP FILE TRANSFER FROM SOURCE (TEST1) TO TARGET (TEST)
COPY THE PFILE FROM SOURCE (TEST1) TO TARGET (TEST)
- CONTROL FILE BACKUP LOCATION SHOWED AFTER RMAN BACKUP WAS DONE.
- GO TO LOCATION COPY THE FILE FROM SOURCE (TEST1) TO TARGET (TEST)
IN SAME LOCATION , COPY THE PASSWORD FILE FROM SOURCE (TEST1) TO TARGET (TEST)
TARGET SERVER:

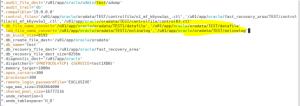

EDIT THE COPIED PFILE
- CHANGE DATABASE NAME
- ADD db_file_name_convert if we use different database name) and add location of datafile used in source server .Use same location in target server and change database name.
- ADD log_file_name_convert, add location of redo log file used in source server.Use same location in target server and change the DB name
ONCE PFILE EDITED
CREATE THE SAME LOCATION FOR PFILE,CONTROL FILE,AUDIT FILE,REDO LOG FILE USED IN SOURCE SERVER

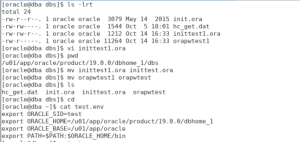

COPY THE PFILE,PASSWORD FILE IN $ORACLE_HOME/dbs LOCATION.
CREATE ENV FILE FOR DATABASE.
- RUN THE ENV FILE
- START THE DATABASE USING sqlplus / as sysdba
- STARTUP NOMOUNT WITH PFILE
CHECK WHERE INSTANCE WAS STARTED USING v$instance

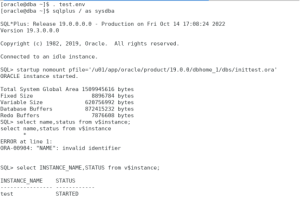

[oracle@dba ~]$ . test.env [oracle@dba ~]$ sqlplus / as sysdbaSQL*Plus: Release 19.0.0.0.0 – Production on Fri Oct 14 17:08:24 2022
Version 19.3.0.0.0
Copyright (c) 1982, 2019, Oracle. All rights reserved.
Connected to an idle instance.
SQL> startup nomount pfile=’/u01/app/oracle/product/19.0.0/dbhome_1/dbs/inittest.ora’
ORACLE instance started.
Total System Global Area 1509945616 bytes
Fixed Size 8896784 bytes
Variable Size 620756992 bytes
Database Buffers 872415232 bytes
Redo Buffers 7876608 bytes
SQL> select INSTANCE_NAME,STATUS from v$instance;
INSTANCE_NAME STATUS
—————- ————
test STARTED
[oracle@dba ~]$ rman auxiliary /
Recovery Manager: Release 19.0.0.0.0 – Production on Fri Oct 14 18:31:41 2022
Version 19.3.0.0.0
Copyright (c) 1982, 2019, Oracle and/or its affiliates. All rights reserved.
connected to auxiliary database: TEST (not mounted)
RUN RMAN COMMAND
RMAN> run {
allocate auxiliary channel aux1 device type disk;
allocate auxiliary channel aux2 device type disk;
DUPLICATE DATABASE TO “TEST” BACKUP LOCATION ‘/home/oracle/backup’ nofilenamecheck;
release channel aux1;
release channel aux2;
}
2> 3> 4> 5> 6> 7>
allocated channel: aux1
channel aux1: SID=28 device type=DISK
allocated channel: aux2
channel aux2: SID=25 device type=DISK
Starting Duplicate Db at 14-OCT-22
searching for database ID
contents of Memory Script:
{
Alter clone database open resetlogs;
}
executing Memory Script
database opened
Recovery Manager complete.
AFTER RECOVERY MANAGER COMPLETE START THE DATABASE
[oracle@dba ~]$ sqlplus / as sysdbaSQL*Plus: Release 19.0.0.0.0 – Production on Fri Oct 14 18:47:02 2022
Version 19.3.0.0.0
Copyright (c) 1982, 2019, Oracle. All rights reserved.
Connected to:
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 – Production
Version 19.3.0.0.0
SQL> select name,open_mode from v$database;
NAME OPEN_MODE
——— ——————–
TEST READ WRITE
