Oracle 12c-Step by Step Manual Data Guard Switchover
Prepared by Ranesh
Details | Primary Side | Standby Side |
Server Name | Primary | Pysical Standby |
DB Name | Warangal | Mumbai |
IP Adresses | 192.168.182.128 | 192.168.182.129 |
Step 1:- Check database role and database name
Primary database:-
select name,open_mode,database_role from v$database
Standby database:-
select name,open_mode,database_role from v$database

Precheck for Switchover:-
Before performing switchover, kindly verify the state of data guard on both the instances by following SQL queries:
ALTER SYSTEM SET log_archive_dest_2=’service=warangal async valid_for=(online_logfiles,primary_role) db_unique_name=warangal’;
Step 2:-

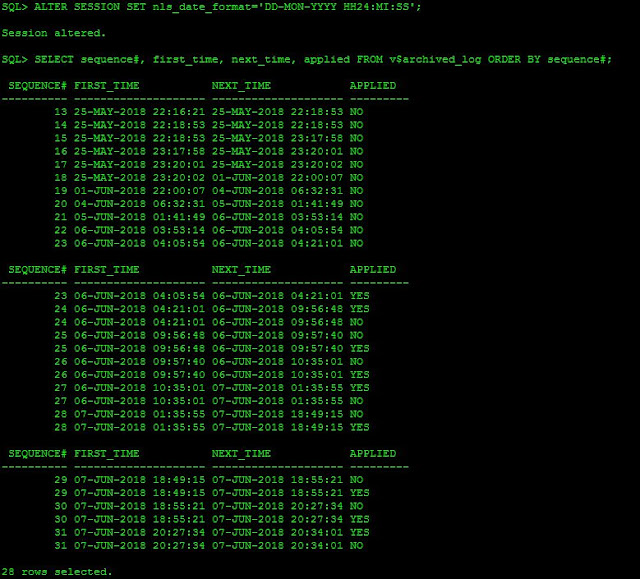

ALTER SESSION SET nls_date_format=’DD-MON-YYYY HH24:MI:SS’;
SELECT sequence#, first_time, next_time, applied FROM v$archived_log ORDER BY sequence#;

On Primary database:-

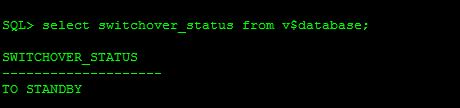

Step 3:- select switchover_status from v$database;

Note: This command will give you appropriate message about the data guard current status.
On Primary database:-
Step 4:
SQL> alter database commit to switchover to standby;

Step 5:-
shutdown immediate
startup nomount
alter database mount standby database

Step 6:-select name,open_mode,database_role from v$database;

alter database recover managed standby database disconnect from session;

On Standby database:
Step 7:-alter database commit to switchover to primary;

Step 8:-select name,open_mode,database_role from v$database;

Details | Primary Side | Standby Side |
Server Name | Physical Standby | Primary |
DB Name | Warangal | Mumbai |
IP Adresses | 192.168.182.128 | 192.168.182.129 |
