APEX INSTALLATION(5.1) in ORACLE12c

In this blog we are going install the apex 5.1. Here, i have a database with 12c. So here i explained about this install steps at database directly.

If we have a database then, follow below steps.

Step 1: Download apex 5.1 from using the below link,

https://www.oracle.com/tools/downloads/apex-v50-downloads.html

Step 2:Save it in our local machine and share it in our VM,

VM->Settings->Shared Folders->Add(browse and select the location of the apex software)

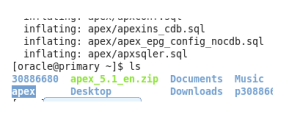

Step 3: Unzip the files(after unzip we get apex folder)

Step 4:We need to startup the database,

[oracle@primary apex]$ export ORACLE_SID=primary

[oracle@primary apex]$ sqlplus / as sysdba

SQL> startup

SQL*Plus: Release 12.2.0.1.0 Production on Mon Sep 28 20:29:59 2020

Connected to an idle instance.

Step 5: Create a tablepspace apex :

SQL> create tablespace apex datafile ‘/u01/app/apex01.dbf’ size 1g;

Tablespace created.

Step 6:check the version of the apex:

SQL> SELECT comp_name, version, status FROM dba_registry WHERE comp_id=’APEX’;

no rows selected

Step 7: Command to install apex

@apexins.sql APEX APEX TEMP /i/

Verify version apex command:

SYS> select * from apex_release;

VERSION_NO

——————————————————————————–

API_COMPATIBILITY

——————————————————————————–

PATCH_APPLIED

——————————————————————————–

5.1.0.00.45

2016.08.24

Step 8: Set the password:

@apxchpwd.sql file.(password – Apex#123)

===================================================================

This script can be used to change the password of an Application Express

instance administrator. If the user does not yet exist, a user record will be

created.

================================================================================

Enter the administrator’s username [ADMIN]

User “ADMIN” does not yet exist and will be created.

Enter ADMIN’s email [ADMIN]

Enter ADMIN’s password []

Created instance administrator ADMIN.

SQL>

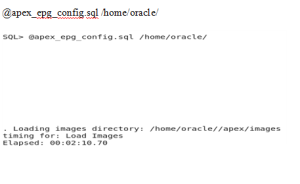

Step 9: It is used to load the images.

@apex_epg_config.sql /home/oracle/

Step `10: Unlock the users:

SQL> col USERNAME for a30

set pages 1000 lines 1000

select username,created,account_status,default_tablespace,temporary_tablespace from dba_users where username like ‘%APEX%’;

SQL> SQL>

USERNAME CREATED ACCOUNT_STATUS DEFAULT_TABLESPACE TEMPORARY_TABLESPACE

—————————— ——— ——————————– —————————— ——————————

APEX_PUBLIC_USER 28-SEP-20 EXPIRED & LOCKED USERS TEMP

APEX_050100 28-SEP-20 EXPIRED & LOCKED APEX TEMP

APEX_INSTANCE_ADMIN_USER 28-SEP-20 EXPIRED USERS TEMP

SQL> alter user APEX_INSTANCE_ADMIN_USER identified by Apex#123 account unlock;

SQL> alter user APEX_PUBLIC_USER identified by Apex#123 account unlock;

alter user APEX_050100 identified by Apex#123 account unlock;SQL>

SQL> ALTER USER anonymous ACCOUNT UNLOCK;

ALTER USER xdb ACCOUNT UNLOCK;

ALTER USER apex_public_user ACCOUNT UNLOCK;

ALTER USER flows_files ACCOUNT UNLOCK;

Step 12: TO CHECK PARAMETER VALUE BY USING

SQL> show parameter shared

NAME TYPE VALUE

———————————— ———– ——————————

hi_shared_memory_address integer 0

max_shared_servers integer

shared_memory_address integer 0

shared_pool_reserved_size big integer 20132659

shared_pool_size big integer 0

shared_server_sessions integer

shared_servers integer 1

We need to change the Shared_servers as Value 5

SQL> show parameter shared_servers

NAME TYPE VALUE

———————————— ———– ——————————

max_shared_servers integer

shared_servers integer 1

SQL>

To change a parameter value of shared serveres by using following command:

SQL> ALTER system SET shared_servers=5 scope=both;

Used to perform the final configuration steps for Oracle Application Express, including setting the XDB HTTP listener port and Application Express ADMIN password.

Running script: @apxconf.sql

Setup password for ADMIN

Configuring XDB Http Listener port

Step 13: Set the gethttpport to 8080.

SQL>SELECT DBMS_XDB.gethttpport FROM DUAL;SQL>

GETHTTPPORT

———–

SQL> EXEC DBMS_XDB.sethttpport(8080);

SQL> SELECT DBMS_XDB.gethttpport FROM DUAL;

After installation of Apex then we want to create the listener and tns :

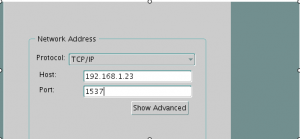

LISTENER:

SERVICE NAME:

TO SET A LOCAL LISTNER IN SQL:
