Introduction
This Post is about to oracle forms-Dynamic Message Tool Tip in oracle EBS-R12
Multiple tooltip message in single text field
Step 1:-

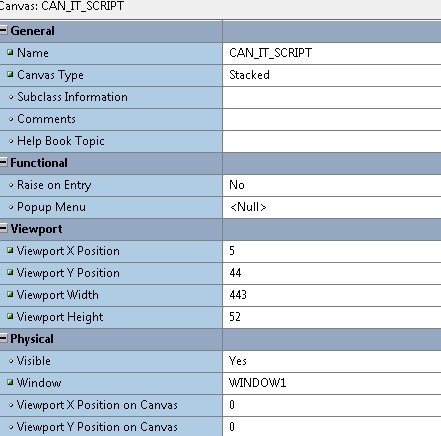

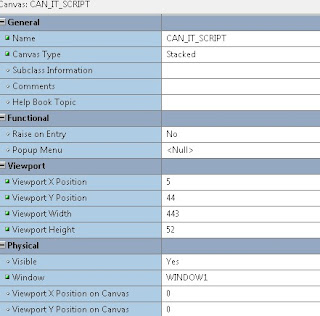

Create canvas and Using the below script below screenshot for reference.
Step 2

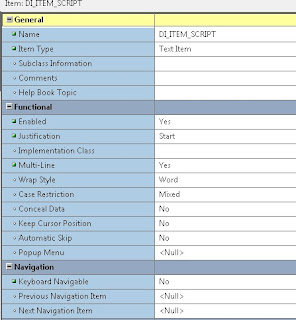

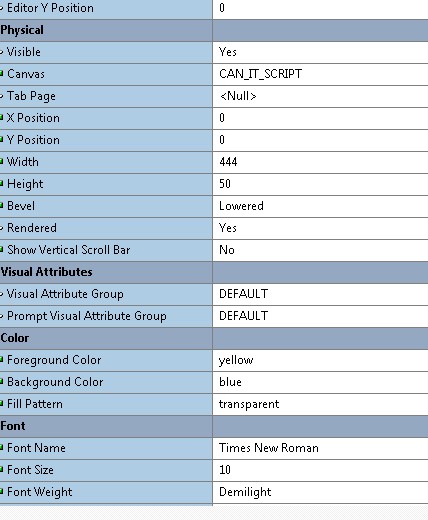

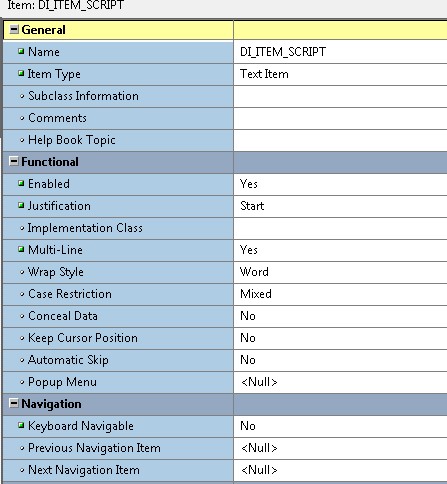

Create Text_field and Using the below script. Below screenshot for reference.
Step 3:
Below script using in tabular form level where ever it is required for hint. Use this in “”When-New-item-Instance” trigger event.
DECLARE
xposition NUMBER;
yposition NUMBER;
cnt NUMBER := TO_NUMBER (:SYSTEM.cursor_record);
BEGIn
:ctrl.di_item_script := ‘Message will type here’;
SET_CANVAS_PROPERTY (‘CAN_IT_SCRIPT’, canvas_size, 200, 20);
SET_VIEW_PROPERTY (‘CAN_IT_SCRIPT’, view_size, 200, 20);
SET_ITEM_PROPERTY (‘CTRL.DI_ITEM_SCRIPT’, item_size, 200, 20);
xposition := GET_ITEM_PROPERTY (:SYSTEM.cursor_item, x_pos);
yposition := GET_ITEM_PROPERTY (:SYSTEM.cursor_item, y_pos);
SET_VIEW_PROPERTY (‘CAN_IT_SCRIPT’, display_x_pos, xposition);
SET_VIEW_PROPERTY (‘CAN_IT_SCRIPT’, display_y_pos, yposition + (16 * cnt));
SHOW_VIEW (‘CAN_IT_SCRIPT’);
END;
