REST your EBS data with Oracle RESTful Data Services (ORDS)

Posted by Abishek Kathiresan

Introduction

Here we share that how to REST your EBS data with Oracle RESTful Data Services (ORDS)

APEX and ORDS

  • APEX uses Oracle Rest Data Services (ORDS) another built-in feature of the Oracle Database, to create Web services.
  • Like APEX, ORDS uses PL/SQL programming language, the same language your EBS developers have been using all along.
  • Using ORDS and APEX, your developers can help generate safe, effective REST-enabled Web services for your EBS system.

Lets get into installation

1. Apex Installation:

Apex software version:apex_4.2.4.zip

Create a new tablespace to act as the default tablespace for APEX.

CREATE TABLESPACE apex DATAFILE ‘/u01/app/oracle/oradata/db11g/apex01.dbf’

  SIZE 100M AUTOEXTEND ON NEXT 1M;

cd  /u01/apex

cp apex_4.2.4.zip /u01/apex

unzip apex_4.2.4.zip

cd apex

connect sqlplus

@apexins.sql APEX APEX TEMP /i/

Once complete, change the admin password by running the “apxchpwd.sql” scripts as the SYS user.

sql> @apxchpwd.sql

Create the APEX_LISTENER and APEX_REST_PUBLIC_USER users by running the “apex_rest_config.sql” script.

SQL> CONN / AS SYSDBA

SQL> @apex_rest_config.sql

2. ORDS Installation:

ords.2.0.10.289.08.09.zip

unzip ords.2.0.10.289.08.09.zip

java -jar ords.war configdir /u01/ORDS

java -jar ords.war

[oracle@dspl1225 ORDS]$ java -jar ords.war

Feb 27, 2018 5:01:31 AM oracle.dbtools.common.config.file.ConfigurationFolder logConfigFolder

INFO: Using configuration folder: /u01/ORDS/ords

Enter the name of the database server [localhost]:129.144.180.26

Enter the database listen port [1521]:

Enter 1 to specify the database service name, or 2 to specify the database SID [1]:2

Enter the database SID [xe]:EBSDB

Enter the database user name [APEX_PUBLIC_USER]:oracle$123

Enter the database password for oracle$123:[oracle@dspl1225 ORDS]$

[oracle@dspl1225 ORDS]$ java -jar ords.war

Feb 27, 2018 5:04:43 AM oracle.dbtools.common.config.file.ConfigurationFolder logConfigFolder

INFO: Using configuration folder: /u01/ORDS/ords

Enter the name of the database server [localhost]:129.144.180.26

Enter the database listen port [1521]:

Enter 1 to specify the database service name, or 2 to specify the database SID [1]:2

Enter the database SID [xe]:EBSDB

Enter the database user name [APEX_PUBLIC_USER]:

Enter the database password for APEX_PUBLIC_USER:

Confirm password:

Enter 1 to enter passwords for the RESTful Services database users (APEX_LISTENER,APEX_REST_PUBLIC_USER), 2 to use the same password as used for APEX_PUBLIC_USER or, 3 to skip this step [1]:1

Enter the database password for APEX_LISTENER:

Confirm password:

Enter the database password for APEX_REST_PUBLIC_USER:

Confirm password:

Feb 27, 2018 5:05:35 AM oracle.dbtools.common.config.file.ConfigurationFiles update

INFO: Updated configurations: defaults, apex, apex_al, apex_rt

Enter 1 if you wish to start in standalone mode or 2 to exit [1]:1

Static Image location need to give Apex images: /u01/apex/images

nohup java -jar ords.war &

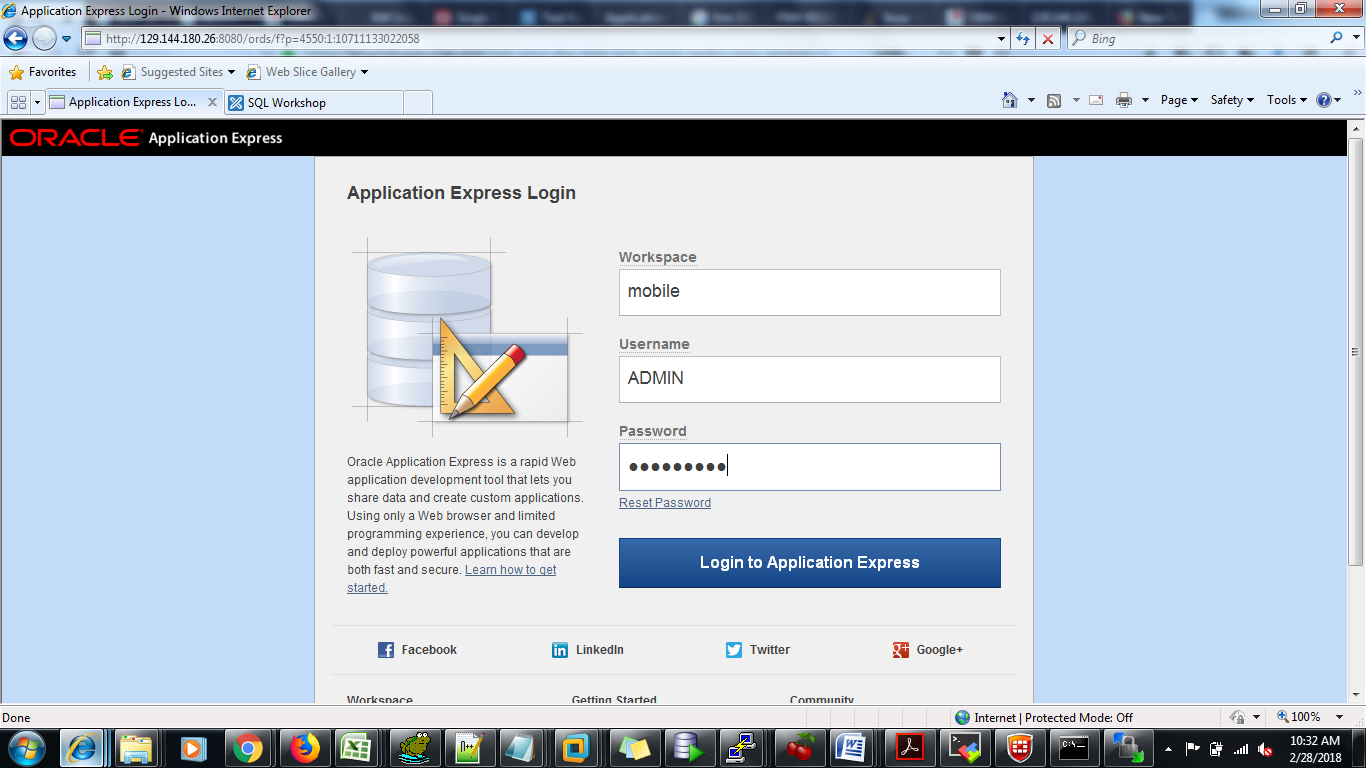

Login to Apex Admin Console

1.Create Workspace and assign default schema as apps.

2.Login to workspace as you created .

Ex:

Workspace Name :Mobile

Username              : admin

Password               : XXXXXXXXX

3. Creating the Web Service

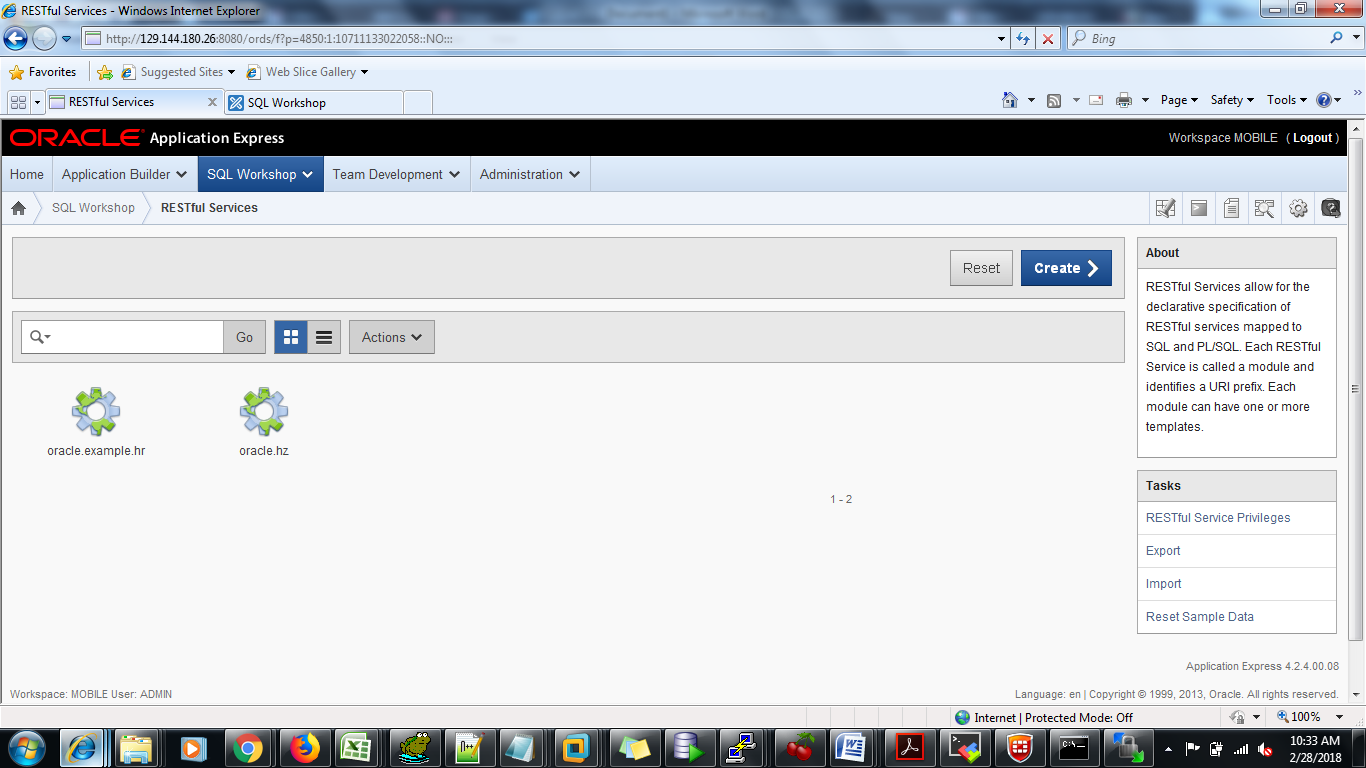

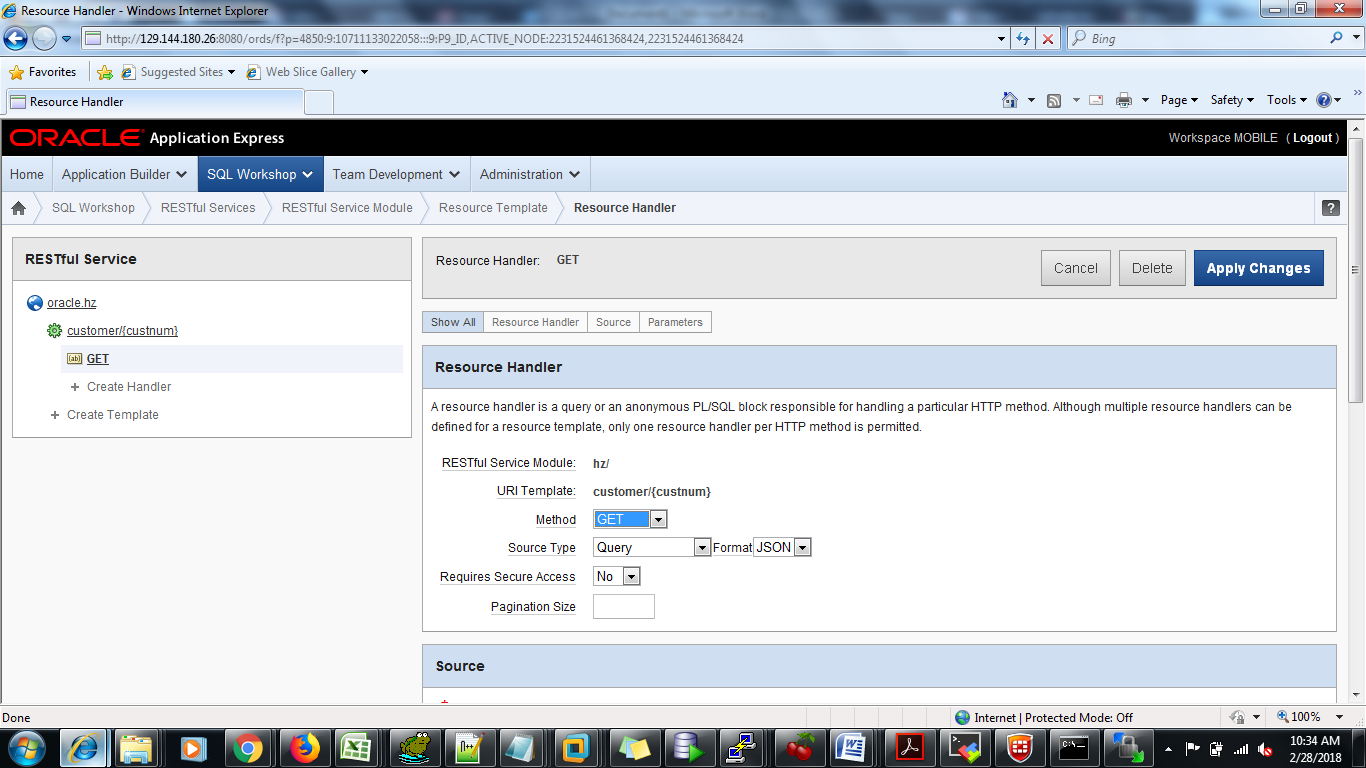

Navigation: SQL Workshop > RESTful Services > Create

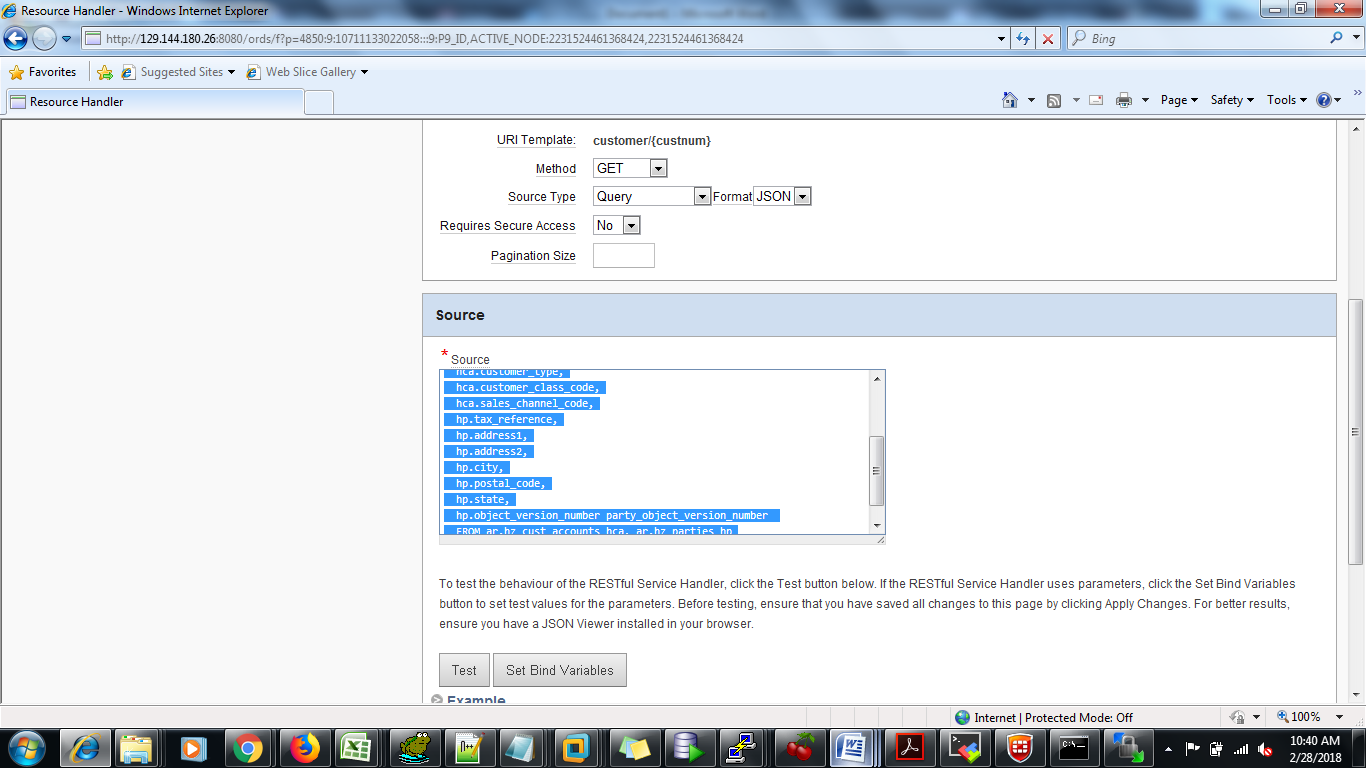

Source

SELECT hca.account_number,

hp.party_name customer_name,

hca.cust_account_id,

hca.object_version_number cust_object_version_number,

TO_CHAR(hca.creation_date,’mm/dd/yyyy’) creation_date,

hca.status,

hca.customer_type,

hca.customer_class_code,

hca.sales_channel_code,

hp.tax_reference,

hp.address1,

hp.address2,

hp.city,

hp.postal_code,

hp.state,

hp.object_version_number party_object_version_number

FROM ar.hz_cust_accounts hca, ar.hz_parties hp  WHERE hp.party_id = hca.party_id AND hca.account_number = :custnum

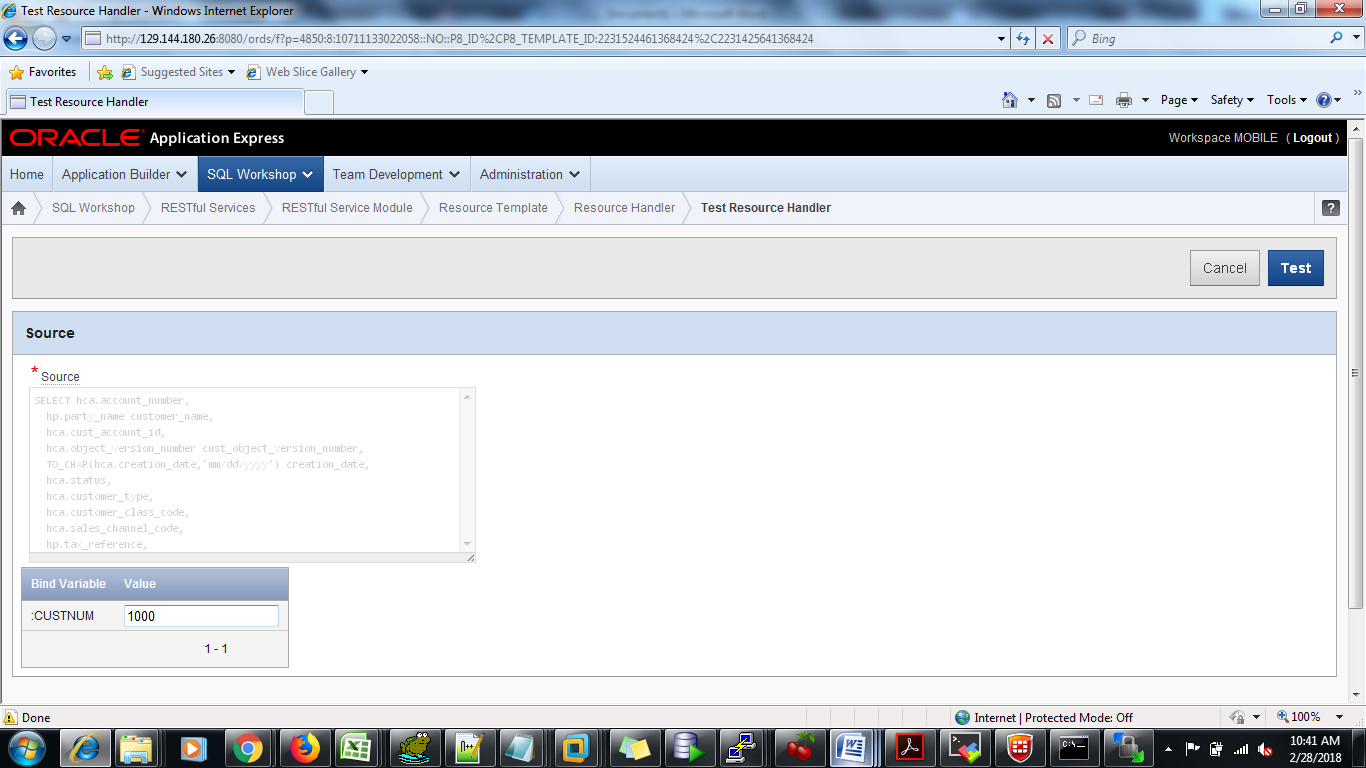

Set Bind Variables

Click TEST
