TLS Certificate Renewal in SQL Server

Objective:

To renew and bind a new TLS certificate to SQL Server to ensure continued secure connections.

Frequency:

Annually or prior to certificate expiration

Prerequisites:

Administrative access to the Windows Server hosting SQL Server
Sysadmin privileges on SQL Server
Access to the new TLS certificate (issued and installed)
Certificate should have the Server AuthenticationEKU and the FQDN of the SQL Server in the subject or SAN

Steps:

1. Verify Current Certificate (Optional but recommended)

Open SQL Server Configuration Manager

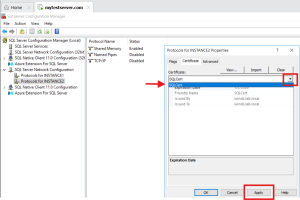

Navigate to SQL Server Network Configuration→ Protocols for <InstanceName>

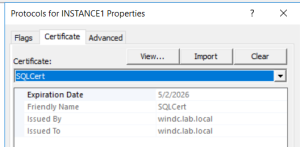

Right-click Properties→ Certificate tab

Take backup of current certificate details

2. Install the New Certificate

Open MMC(exe)

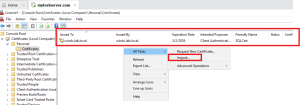

Import the new certificate under: Personal→ Certificates

Make sure the certificate has:
Private key
Server Authentication listed under Enhanced Key Usage
The correct FQDN in the subject or SAN

Assign Permissions to SQL Server Service Account on the Certificate

After importing the certificate, you must give the SQL Server service account permission to use the certificate’s private key, or SQL Server won’t be able to bind the certificate.

Identify the SQL Server service account:
Open SQL Server Configuration Manager
Go to SQL Server Services

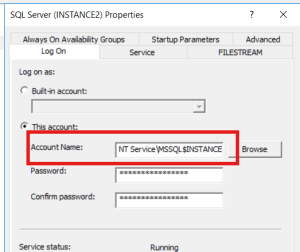

Note the Log On As account for your SQL Server instance (e.g., NT Service\MSSQLSERVER or a domain account like DOMAIN\sqlsvcprod)

Open Certificate Manager (MMC):
Run msc to open the Local Machine certificate store.
Navigate to: Personal → Certificates
Locate the certificate you just installed.

Open Certificate Permissions

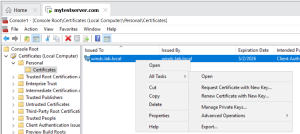

Right-click the certificate → All Tasks→ Manage Private Keys

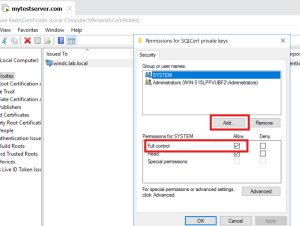

In the Permissions window: Click Add
Enter the SQL Server service account name
If it’s a built-in service account (e.g., NT Service\MSSQLSERVER), make sure to include the NT Service\
Click Check Names to validate it.
Once added, select the account and check Allow → Full Control
