Objective:

Using Oracle Apex Package Apex mail, How we can frame mails and send with the help of oracle PL/SQL  Program.



Definition:

We have 3 Procedures inside Apex_mail,

  • Send
  • Add_attachment
  • Push_queue

Syntax:

(1)APEX_MAIL.SEND (

p_to                        IN    VARCHAR2,

p_from                      IN    VARCHAR2,

p_body                      IN  [ VARCHAR2 | CLOB ],

p_body_html                 IN  [ VARCHAR2 | CLOB ] DEFAULT NULL,

p_subj                      IN    VARCHAR2 DEFAULT NULL,

p_cc                        IN    VARCHAR2 DEFAULT NULL,

p_bcc                       IN    VARCHAR2 DEFAULT NULL,

p_replyto                   IN    VARCHAR2);

(2)APEX_MAIL.ADD_ATTACHMENT (

p_mail_id                   IN    NUMBER,

p_attachment                IN    BLOB,

p_filename                  IN    VARCHAR2,

p_mime_type                 IN    VARCHAR2);

(3)APEX_MAIL.PUSH_QUEUE;

Monitoring Table:

APEX_MAIL_LOG

APEX_MAIL_QUEUE

Configuration Setting for Using Apex_mail:

APEX Mail Server Setup:

  • The APEX mail system sends email to a mail server or mail relay. The details of the service need to be set at in the APEX instance. You can find that location here.

(1)Log into APEX using the INTERNAL workspace. Navigate to “Manage Instance > Instance Settings > Email (tab)”.

(2)Set your mail server details, then click the “Apply Changes” button.

Note: If you are using a local mail relay on the database server, the default settings of “localhost”

And port 25 should work fine.

  • Remember, if you are accessing an external mail server using TLS, you will need to include the root certificate in the wallet referenced by the APEX instance.

(1)  Log into APEX using the INTERNAL workspace.

(2) Navigate to “Manage Instance > Instance Settings > Wallet (tab)”.

(3) Enter the path to the wallet, prefixed with “file:”. The wallet password is not needed if the wallet is set to auto-login. Click the “Apply Changes” button.

Network ACL:

  • We need to make sure the . database can make a callout to the mail server. This requires a network ACL for the specific host and port.
  • In the following example we are using “localhost:25”, a local relay on the database server. The principal of the ACL must be “APEX_XXXXXX” user.

declare

l_username varchar2(30) := ‘APEX_210100’;

begin

dbms_network_acl_admin.append_host_ace(

host => ‘localhost’,

lower_port => 25,

ace  =>  xs$ace_type(privilege_list => xs$name_list(‘connect’),

principal_name => l_username,

principal_type => xs_acl.ptype_db));

commit;

end;

/



Note:

If we want to use the APEX_MAIL package from PL/SQL without APEX itself, we need to manually set the security group to a valid workspace for our session.

begin

apex_util.set_workspace(p_workspace => ‘DEV_WS’);

end;

/

Examples:



Example 1: Simple Email

begin

apex_mail.send

(p_to=>’*******@GMAIL.COM’,

p_from=>’*******@GMAIL.COM’,

p_subj=>’Welcome Emailer’,

p_body=>’Welcome to Oracle Apex Sending Emailer Session’);

APEX_MAIL.PUSH_QUEUE;

end;

/

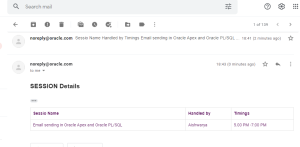

Output:

Note:

select * from apex_mail_queue;–Every 5 minutes once Mail queue Processed

In order to Force Send, we will use below procedure– APEX_MAIL.PUSH_QUEUE



Example 2: Email with html body

begin

apex_mail.send

(p_to=>’*******@GMAIL.COM’,

p_from=>’*******@GMAIL.COM’,

p_subj=>’Welcome Emailer’,

p_body=>’Welcome to Oracle Apex Sending Emailer Session’,

p_body_html=>'<table style=”width:100%”>

<tr>

<th>Sessio Name</th>

<th>Handled by</th>

<th>Timings</th>

</tr>

<tr>

<td>Email sending in Oracle Apex and Oracle PL/SQL</td>

<td>Aishwarya</td>

<td>5.00 PM -7:00 PM</td>

</tr>

</table>’);

APEX_MAIL.PUSH_QUEUE;

end;

/

Output:



Example 3: Email with Html table with styles

begin



apex_mail.send

(p_to=>’***********@gmail.com’,

p_from=>’**********@gmail.com’,

p_subj=>’Welcome Emailer’,

p_body=>’Welcome to Oracle Apex Sending Emailer Session’,

p_body_html=>'<html><head><style>

table {

font-family: arial, sans-serif;

border-collapse: collapse;

width: 100%;

}

td, th {

border: 1px solid #dddddd;

text-align: left;

padding: 8px;

}

tr:nth-child(even) {

background-color: #dddddd;

}

</style>

</head>

<body>

<h2>SESSION Details</h2>

<table>

<tr>

<th>Sessio Name</th>

<th>Handled by</th>

<th>Timings</th>

</tr>

<tr>

<td>Email sending in Oracle Apex and Oracle PL/SQL</td>

<td>Aishwarya</td>

<td>5.00 PM -7:00 PM</td>

</tr>

</table>

</body>

</html>

‘);

APEX_MAIL.PUSH_QUEUE;

end;



Output:

Example 4: character limitation and steps to overcome. And Adding Signature line to the Email.

declare

l_body  varchar2(2000):=’Welcome to Oracle Apex Sending Emailer Session’ ;

l_body_html  varchar2(4000);

begin

l_body_html:='<html>

<head>

<style>

table {

font-family: arial, sans-serif;

border-collapse: collapse;

width: 100%;

}

td, th {

border: 1px solid #dddddd;

text-align: left;

padding: 8px;

}

tr:nth-child(even) {

background-color: #dddddd;

}

</style>

</head>

<body>

<h2>SESSION Details</h2>

<table>

<tr>

<th>Sessio Name</th>

<th>Handled by</th>

<th>Timings</th>

</tr>

<tr>

<td>Email sending in Oracle Apex and Oracle PL/SQL</td>

<td>Aishwarya</td>

<td>5.00 PM -7:00 PM</td>

</tr>

</table>

</body>

</html>’||utl_tcp.crlf;

l_body_html := l_body_html ||'<p>Note:Do Attend and Show your Interest towards <strong>Our Session.</strong></p>’||utl_tcp.crlf;

l_body_html := l_body_html ||’Sincerely,<br />’||utl_tcp.crlf;

l_body_html := l_body_html ||’ <span class=”sig”>Custom Development Team</span><br />’||utl_tcp.crlf;

apex_mail.send

(p_to=>’*******@gmail.com’,

p_from=>’********@gmail.com’,

p_subj=>’Welcome Emailer’,

p_body=>l_body,

p_body_html=>l_body_html);

APEX_MAIL.PUSH_QUEUE;

end;

Ouput:



Example 5:  Sending attachment using apex_mail



Blob file as attachment:

DECLARE
    l_id NUMBER;
BEGIN
    l_id := APEX_MAIL.SEND(
    p_to                        => ‘xxxxx@gmail.com’  ,
    p_from                      => ‘xxxxx@gmail.com’  ,
    p_body                      => ‘Welocme to Oracle Apex Sending Emailer Session’  ,
    p_body_html                 =>  ‘<html><head><style>
table {
  font-family: arial, sans-serif;
  border-collapse: collapse;
  width: 100%;
}
td, th {
  border: 1px solid #dddddd;
  text-align: left;
  padding: 8px;
}
tr:nth-child(even) {
  background-color: #dddddd;
}
</style>
</head>
<body>
<h2>SESSION Details</h2>
<table>
   <tr>
    <th>Sessio Name</th>
    <th>Handled by</th>
    <th>Timings</th>
  </tr>
  <tr>
    <td>Email sending in Oracle Apex and Oracle PL/SQL</td>
    <td>Aishwarya</td>
    <td>5.00 PM -7:00 PM</td>
  </tr>
</table>
</body>
</html>
  ‘ ,
    p_subj                      =>’Welcome Emailer’);
FOR c1 IN (SELECT filename, blob_content, mime_type
FROM apex_application_files
WHERE ID IN (select max(id) from
apex_application_files))
 LOOP
APEX_MAIL.ADD_ATTACHMENT(
p_mail_id => l_id,
p_attachment => c1.blob_content,
p_filename => c1.filename,
p_mime_type => c1.mime_type);
END LOOP;
COMMIT;
END;

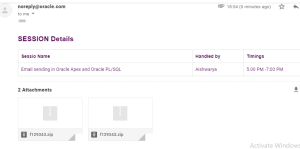

Output:

Example 6: Sending Multiple File as Attachment:

DECLARE

l_id NUMBER;

BEGIN

l_id := APEX_MAIL.SEND(

p_to                        => ‘xxxxxxxx@gmail.com’  ,

p_from                      => ‘xxxxxxxx@gmail.com’  ,

p_body                      => ‘Welocme to Oracle Apex Sending Emailer Session’  ,

p_body_html                 =>  ‘<html><head><style>

table {

font-family: arial, sans-serif;

border-collapse: collapse;

width: 100%;

}

td, th {

border: 1px solid #dddddd;

text-align: left;

padding: 8px;

}

tr:nth-child(even) {

background-color: #dddddd;

}

</style>

</head>

<body>

<h2>SESSION Details</h2>

<table>

<tr>

<th>Sessio Name</th>

<th>Handled by</th>

<th>Timings</th>

</tr>

<tr>

<td>Email sending in Oracle Apex and Oracle PL/SQL</td>

<td>Aishwarya</td>

<td>5.00 PM -7:00 PM</td>

</tr>

</table>

</body>

</html>

‘ ,

p_subj                      =>’Welcome Emailer’  );



FOR c1 IN (SELECT filename, blob_content, mime_type

FROM apex_application_files

WHERE ID IN (11918898404194145282,12992585427001103947))

LOOP



APEX_MAIL.ADD_ATTACHMENT(

p_mail_id => l_id,

p_attachment => c1.blob_content,

p_filename => c1.filename,

p_mime_type => c1.mime_type);

END LOOP;

COMMIT;

END;

Output:

Example 7: Table Data as Email Body

DECLARE

l_body CLOB := NULL;

CURSOR c1 IS

SELECT a.empno,a.ename,a.job,a.sal,b.DNAME

FROM   emp a,

dept b

where a.deptno=b.DEPTNO

ORDER  BY a.EMPNO;

BEGIN





l_body := l_body

|| ‘<table><tr><th>Employee Details</th></tr><tr>

<th><b>EMPNO</b></th>

<th>ENAME</th>

<th>JOB</th>

<th>SAL</th>

<th>Department Name</th> </tr>’;



FOR rec IN c1 LOOP



l_body := l_body || ‘<tr> <td>’ || rec.EMPNO

||'</td> <td>’ || rec.ENAME

||'</td> <td>’ || rec.JOB

||'</td> <td>’ || rec.SAL

||'</td> <td>’ || rec.DNAME

||'</td> </tr>’|| utl_tcp.crlf;

END LOOP;



l_body := l_body || ‘</table>’ || utl_tcp.crlf;

l_body := l_body || ‘<br>’ || utl_tcp.crlf;

l_body := l_body || ‘</td>’|| utl_tcp.crlf;

l_body := l_body || ‘</tr>’|| utl_tcp.crlf;

l_body := l_body || ‘</table>’|| utl_tcp.crlf;



–dbms_output.Put_line(l_body);



apex_mail.Send(p_to => ‘xxxxxxxx@gmail.com’,

p_from => ‘xxxxxxxx@gmail.com’,

p_subj => ‘Employee Details’,

p_body => l_body,

p_body_html => l_body);



apex_mail.push_queue;

END;

Output:

Note:

There are more use cases with respect to “Apex_mail” .Here, i have covered some of the basic examples.
